TFT Round Display Module 1.53 Inch 360*360 Resolution QSPI Interface View Angle All Brightness 400 C/d

Name: TFT Round Display Module 153 Inch 360360 Resolution QSPI Interface View Angle All Brightness 400 Cd
Brand: HuaXin
Price: 3 USD

China TFT Round Display Module 1.53 Inch 360*360 Resolution QSPI Interface View Angle All Brightness 400 C/d wholesale

Brand Name : HuaXin

Model Number : ESHX0153Y002

Certification : ISO14001/ ISO9001/IATF16949

Place of Origin : China

MOQ : 1000

Price : $3-$5

Payment Terms : T/T

Supply Ability : 500K pcs per month

Delivery Time : 4~6weeks

Packaging Details : blister+foam box+bubble bag+inside carton+master carton

Display Technology : TFT module

Name : tft panel

Display size : 1.63inch

Resolution : 360*360

interface : QSPI

view angle : all

Contact Now

ESHX0153Y002 is 1.53 inch a color active matrix round TFT LCD display ,360*360 resolution and view angle is all o'clock, QSPI interface , Brightness 400c/d.

Technical Specifications

Display Technology	TFT module
Display Size	1.53 inch
Resolution	360 * 360
Interface	QSPI
Brightness	400 cd/m²
View Angle	All
Drive IC	ST77916
Part No.	ESHX0153Y002
Working Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C

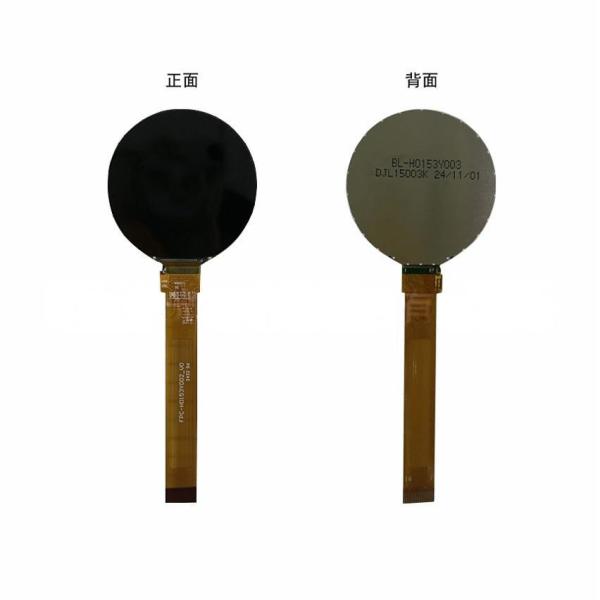

Product Images

TFT Round Display Module 1.53 Inch 360*360 Resolution QSPI Interface View Angle All Brightness 400 C/d

Manufacturer Advantages

Cost-effective production facility in inland China
Advanced equipment ensuring stable product quality
Automated manufacturing processes for efficiency and consistency
Experienced engineering team with 20+ years in LCD technology
Custom design capabilities for specialized requirements

About Huaxin Technology (Enshi) Co., LTD

Established in 2009 and located in Hubei Enshi, Huaxin Technology is a high-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

Product Range

VA, TN, HTN, STN, FSTN, CSTN LCD series
COB, TBA, COG, TP, LED backlight LCM series

Company Details

Registered capital	20 million
Staff	500+ (10% R&D, 15% QC)
Certifications	ISO14001, ISO9001/IATF16949, SGS

Production Capacity (k/Day)

Product	2021	2022	2023	2024	2025
LCD	4.5	9	9	9	9
LCM	70	150	300	450	450
Backlight	100	200	300	500	500
OLED	10	20	30	40	50

Applications

Car navigation systems & printers
Video communication & advertising displays
Automotive & medical devices
Fitness equipment & handheld devices
Industrial control systems & home appliances

TFT Display Characteristics

Excellent image quality with high resolution and color accuracy
Fast response times for smooth transitions
Wide viewing angles with minimal color shift
Energy efficient operation
Available in various sizes for different applications
LED backlighting for consistent illumination

TFT Display Limitations

Viewing angles may be limited compared to other technologies
Moderate contrast ratios
Backlighting increases power consumption
Potential motion blur in fast-moving content
Limited flexibility in physical form
Color gamut may be narrower than some alternatives
